Filters Measurements

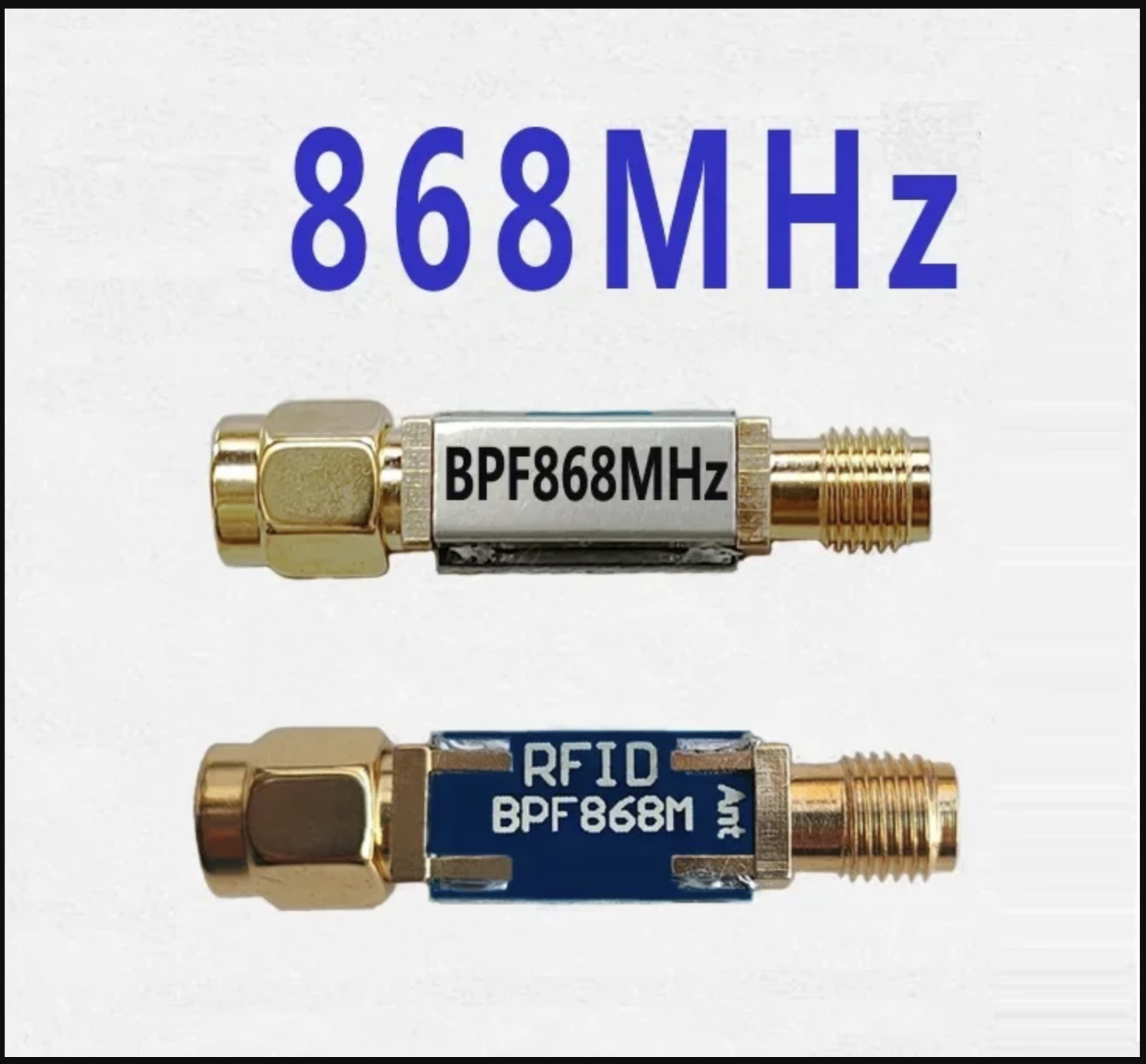

868MHz RFID SAW bandpass filter, 867～869MHz, 2MHz bandwidth Module Board (20dBm)

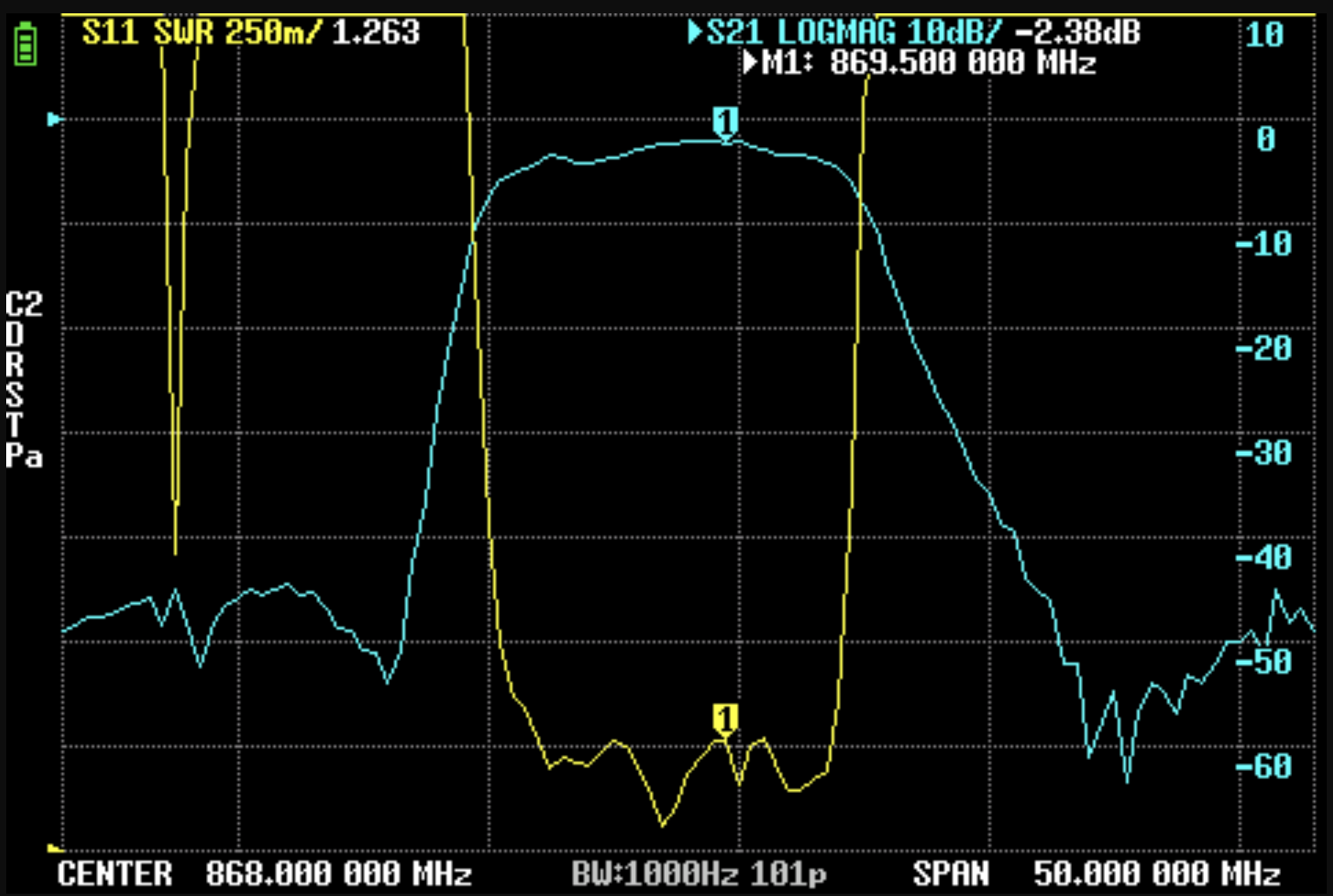

Image of 868MHz SAW Bandpass Filter Measurement of 868MHz RFID SAW Bandpass Filter

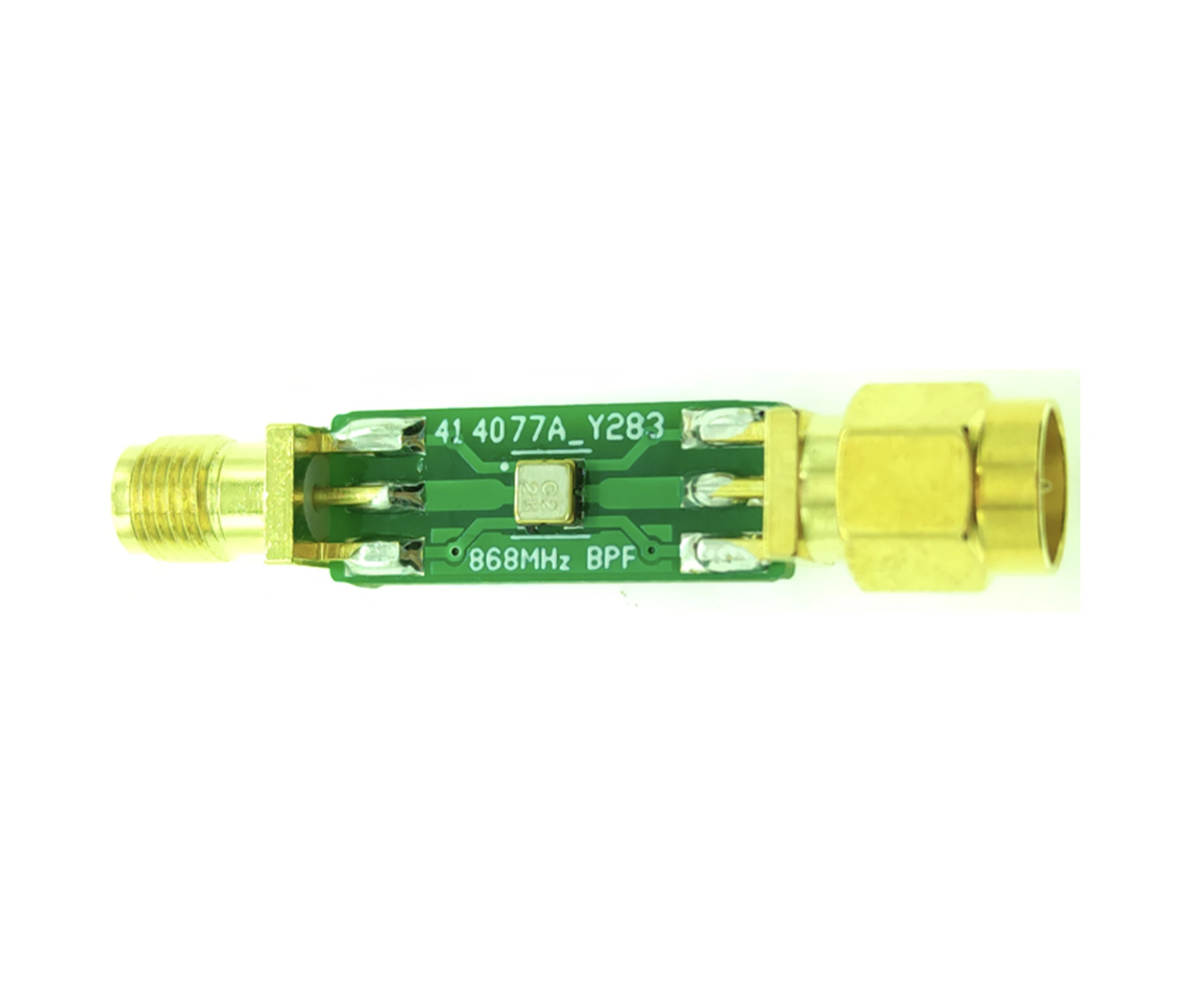

868Mhz Saw Bandpass Filter Bandwidth BPF-868Mhz RF Coaxial Bandpass Filter (13dBm)

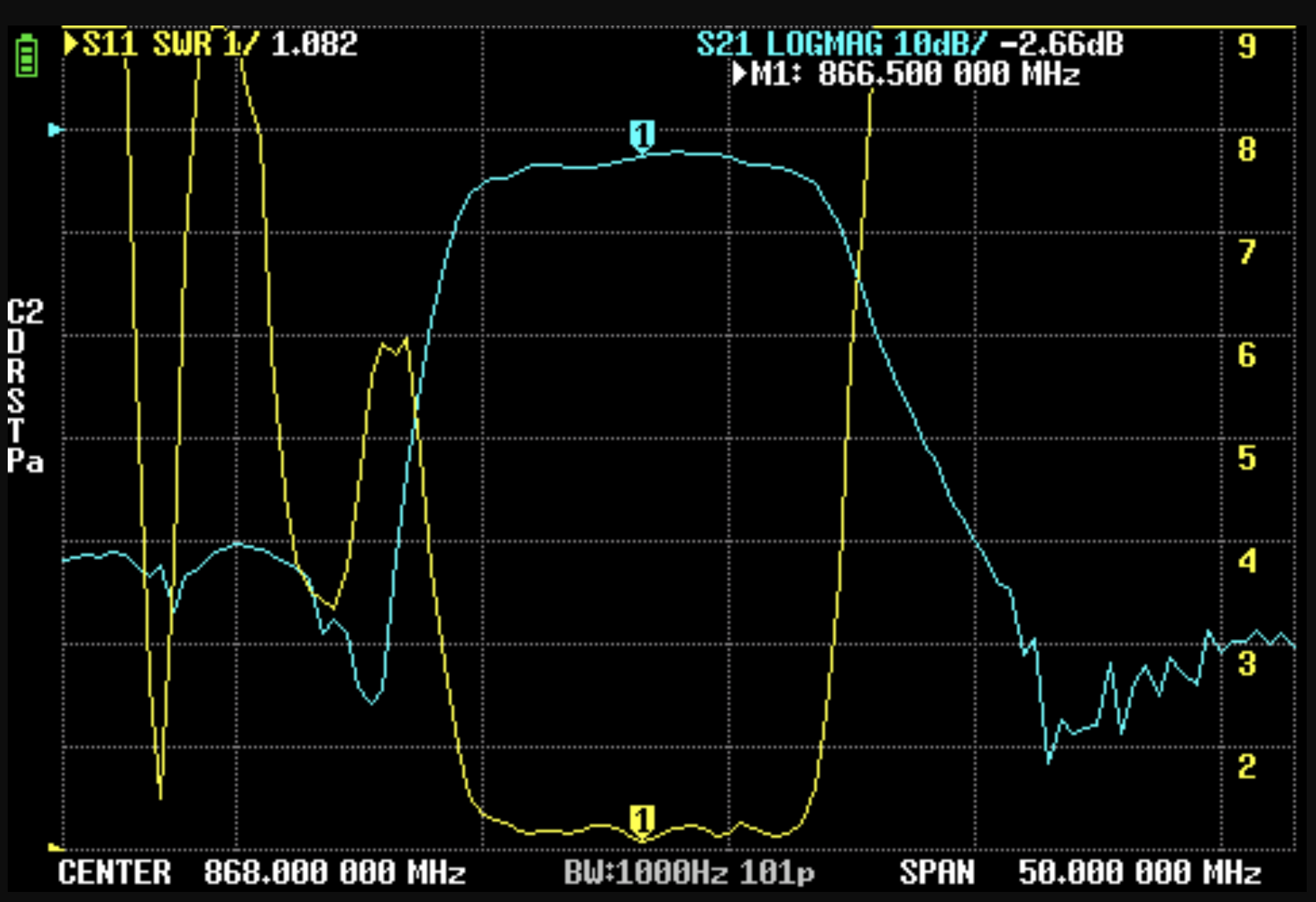

Image of 868MHz SAW Bandpass Filter Measurement of 868MHz RFID SAW Bandpass Filter
868Mhz Bandpass Filter (30dBm / 1W)

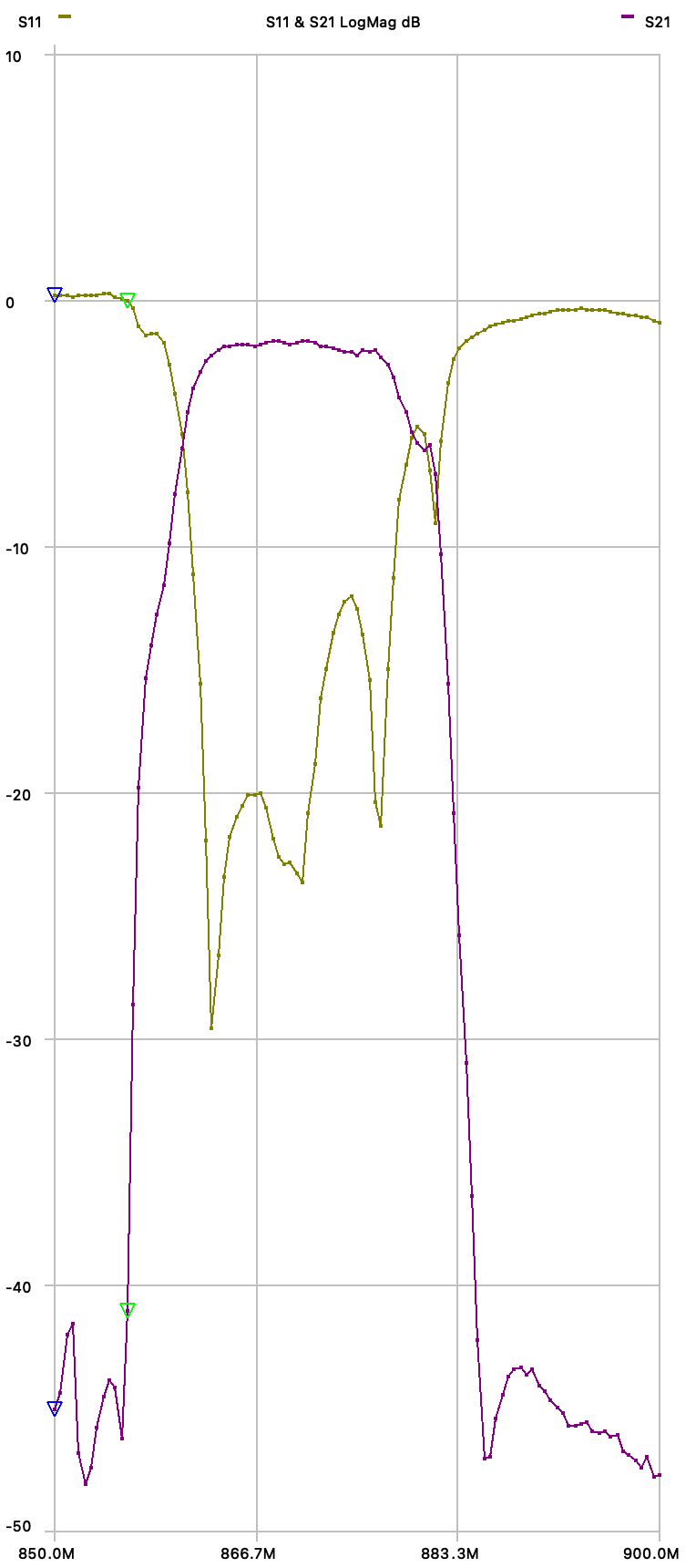

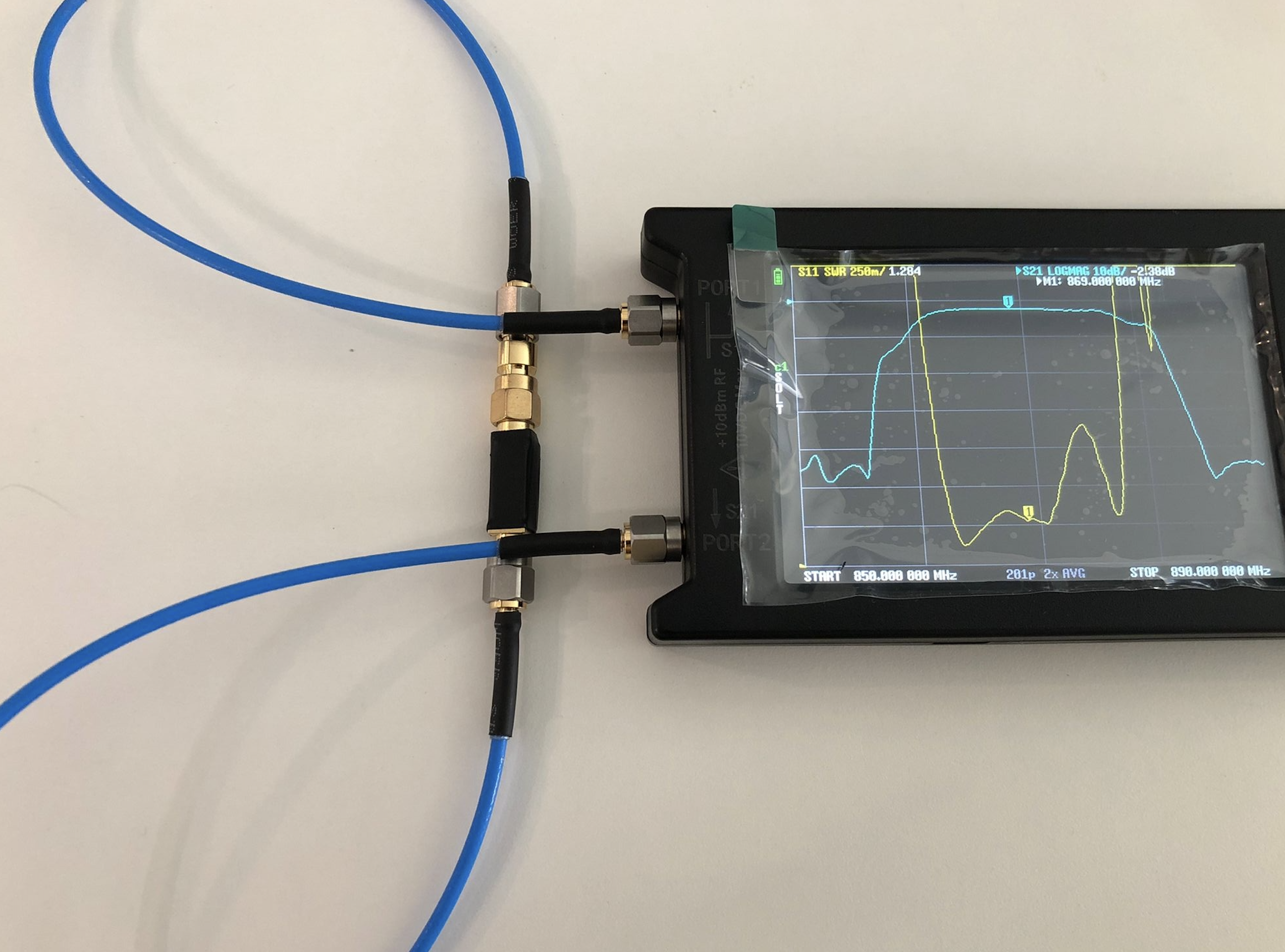

Image of 868MHz Bandpass Filter Measurement of 868MHz Bandpass Filter
BPF Band Pass Filter 2.4Ghz (20dBm / 100mW)

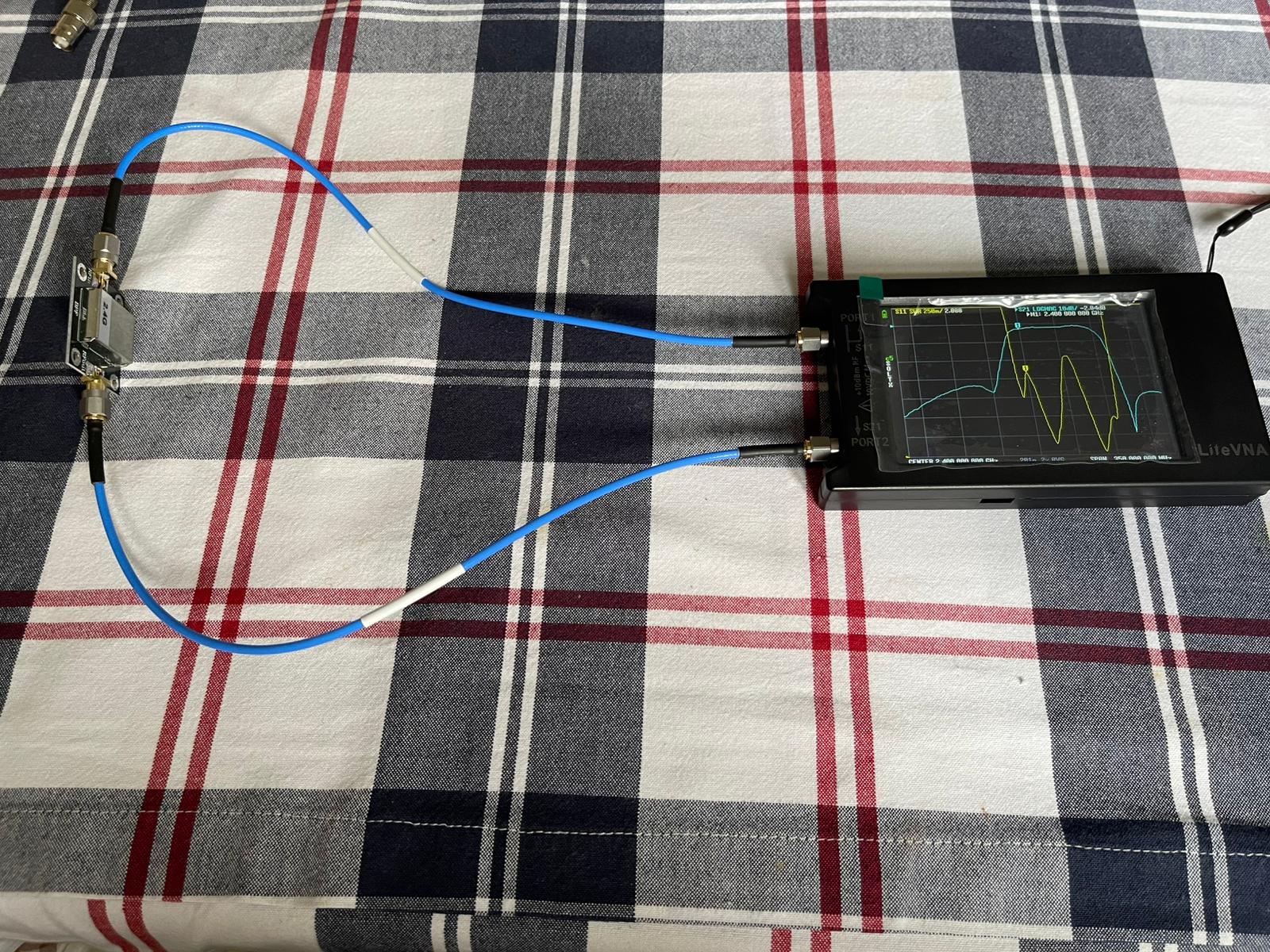

Image of 2,4GHz Bandpass Filter Measurement of 2,4GHz Bandpass Filter
Mini BPF Band Pass Filter 2.4Ghz (20dBm / 100mW)

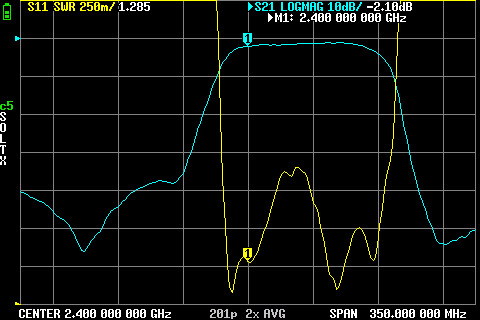

Image of 2,4GHz Bandpass Filter Measurement of 2,4GHz Bandpass Filter
